Fulbourn Community Swift Survey 2013

The Fulbourn Swifts housing development is one of the largest and most successful nest-boxing projects in the country

Contributed by John Willis

This was a very successful year for the Fulbourn Swifts Group and the fine weather helped to make it a great year for the local swifts as well.  Increased publicity enabled us to recruit new members for the survey and to significantly raise awareness about swifts in the village.  Our main focus was again on surveying swifts on the Swifts housing development, which is approaching completion, but also we were able to monitor the small colony located at St Vigor’s Church. In June a BBC crew filmed the survey team in action for an item on swifts in the regional television programme ‘Urban Jungle’.

The survey team pictured in front of the Fulbourn Life Wall

On the Swifts Development, an estate of 1960s system built houses, home to a large colony of swifts, has been demolished to be replaced by new homes with internal and external swift nest boxes.

At the start of the swift season the third part (Phase 2a) of the Development had been completed and building work had commenced on the fourth and final part. One original block of five houses will remain after the completion of the redevelopment and these still provide nest sites for swifts. [You can read background information in Fulbourn Community Swift Survey 2012 and Swifts in Fulbourn, Cambridgeshire.]

In March we mounted a display at Fulbourn Community Market, followed by publishing an item in the Parish Council Newsletter and by distributing a flyer to all homes on the Swifts Development. The latter was particularly successful as we recruited several local residents, who participated in the survey, and during the season others telephoned or sent e-mails to report observations made from their own homes.

We met on site for the survey every Wednesday evening from the beginning of May to late August, but individuals made observations on many other evenings during the summer. There were usually between 5 and 10 observers, but numbers peaked at 17 to coincide with the presence of the BBC film crew!

Swifts moved into nest boxes on these newly completed houses’

Our first two swifts of the season were seen at the survey on 1 May and due to the cool weather the numbers were slow to pick up with double figures not being recorded until mid-month.

The numbers flying overhead varied throughout June depending on the weather with a maximum of 30 being observed mid-month. Flying numbers improved significantly during the warm weather of July, presumably with a large influx of prospecting young birds.

Peak numbers of 50+ were seen around mid-month with low level screaming parties of up to 20 birds providing a wonderful spectacle. In the first few days of August there were still around 30 birds flying overhead, but numbers dropped well into single figures within a week. The last low level screaming party was observed on 7 August. However, swifts were still feeding young in at least five nests up to mid-month and were still active at two sites on 21 August. The last swift of the season was seen on 28 August entering a nest site in a block of old houses, which is due for demolition.

At the start of the season there were 227 swift nest boxes on site – 139 internal and 88 external – and it was a significant challenge for us to successfully monitor all of these, as is demonstrated by our observation on 7 August of an adult swift feeding young in a box where we had not noticed any activity before!

This year, swifts were observed using 66 out of 139 internal nest boxes, 9 out of 88 external nest boxes and 5 sites in the remaining old block – 80 sites in total. We estimate that there were 58 potential breeding pairs – 51 in internal boxes, 3 in external boxes and 4 in the old block. In 2012 we saw 51 locations in use and we estimated that there were 32 breeding pairs, so it appears that 2013 was a great year for Fulbourn swifts and the outlook for the colony looks very bright!

A young swift viewing the Fulbourn streetscape in mid-July

In the hot weather of mid-July we observed several young swifts at nest box entrance holes, and around this time two young swifts were found out of the nest at different locations and were taken to Judith Wakelam, who successfully raised them to fledging. One of these had even survived being picked up by a cat!

Over the last few years swifts have colonised each of the areas of new development in turn usually after a delay of one season for prospecting, but this year a few pairs moved into nest boxes in houses that had been built over the winter.

The major preference was again for the internal boxes although we saw one additional breeding pair using the external Schwegler boxes this year with prospectors in another 6, which is encouraging for next year. We have previously noted the presence of starlings in some Schwegler boxes but we have not observed any direct interaction between starlings and swifts. Last year we reported attempts to make these boxes less attractive to starlings (you can read background information at Fulbourn update) and they successfully nested in at least one of these modified boxes in 2013.

Swifts started using these unusually located boxes this year

Most of the internal boxes in the earlier phases of the new housing development are located high up on the gable ends of either two storey houses or three storey flats and many of these are already occupied by breeding pairs, so it was interesting to observe swifts this year using a set of three boxes located just behind a lamp post on the gable end of a single storey house (see picture). The nest box entrances are around 4.5m above ground level. Young swifts were raised in the left hand box (we heard them up to 21 August) and the middle box was also used by swifts over a period of weeks during which time a sparrow also showed interest! Residents have reported sightings of sparrows regularly using some of the internal swift nest boxes.

This sparrow was visiting a box being used by swifts!

As mentioned above, we monitored the small swift colony at St Vigor’s Church where four nest sites were used for the third year running. Activity around the Churchyard reached a peak in mid-July with some wonderful flying displays of over 20 birds right in the heart of the village. The group flying here are supplemented by birds from the nearby small colony on the Old Manor House, which was not monitored this year.

Over the last two years 30 swift nest boxes have been installed on houses in various areas of the village away from the new housing development and we remain optimistic of recording our first use of any of these in 2014.

The builders are now working well into the last phase of the Swifts Development so by the start of the new swift season there could be up to 50 additional swift boxes available on site for us to monitor. In spring 2014 we intend to survey breeding starlings in the external boxes to increase our understanding of the potential for impact on swifts attempting to breed in them.

We will continue with our publicity within the village to maintain awareness of the project and to ensure that we have good participation in the 2014 survey. If any Fulbourn residents reading this would be interested in putting up a nest box or taking part in the 2014 survey, then please contact us at fulbournforum@gmail.com.

Retrofitted observation Swift boxes inside a gable end

Toby Wilson, of RSPB Scotland, has kindly sent in this story, with pictures, of a neat and practical way of incorporating Swift boxes in an attic behind a gable end. Similar nest boxes configured this way have been very successful in Fulbourn, Cambs.

A view from the outside

Following very helpful and much appreciated advice from Chris Mason and friends, in April 2013 my parents installed two Schwegler Swift Observation Boxes (See here) in the gable wall of their home in east Oxford. We thought it would be a good site as each year a screaming party of around twenty swifts gather above the house and fly along the road.

Inside the roof space

Swifts have also been at least prospecting (too high and awkward to confirm) under the gable eaves in previous years (See Youtube ). My brother played attraction calls from the window in the gables during summer 2013 but the boxes do not appear to have been used.

The upper box reveals a glass back

I am based in Glasgow, so I have not been able to monitor properly the use of the boxes to see whether any birds have been prospecting but I hope to spend more time there next summer and will also aim to rig up some speakers next to the boxes in the roof space

Installation diagram

Installation required drilling a ~100mm hole through the wall, to take the entrance pipe, then fitting a Schwegler face plate to the outside and bolting the box to the inside.

#inserts

Swift Bricks

Written by Dick

Accommodation for Swifts built in to buildings is to be preferred to accommodation retrofitted on the outside. Planning departments  are now conditioning new developments and renovations to provide space for wildlife in the interests of biodiversity: bats, House Sparrows, Starlings and Swifts.  We have produced a downloadable pdf with all of the Swift bricks that we have found so far, with pictures, a table of dimensions and approximate prices. This has now been taken on by the RSPB and Swift-Conservation as a good way to promote Swift Bricks.

 DOWNLOADABLE PDF

Here are a few examples to whet your appetite:

Birdbrickhouses
This is a box designed so that the replaceable front can be matched with any existing brickwork. We reviewed it here








CJ Wildlife Woodstone
This is one of 3 models that CJ Woodstone supply, the others you can see on their website. The one illustrated here is the 90068.

Ecosurv
The front can be custom made to match any bricks. There is another version with the entrance 1 brick lower.

Ibstock
An attractive brick, designed to encroach minimally on the cavity. We have an account of an early success here.

Schwegler
Perhaps the oldest established company in the Swift brick business. There are a number of designs in their catalogue, including the Cavity Panel. Schwegler boxes have been very successful for Swifts.
The one illustrated here is the 16S.

Hanson clay air brick liner
The model 401 makes an attractive, low cost Swift brick. We wrote up how to make and install it here, and Swifts seem to like it.
(Scroll to page 9 on the PDF)

Product Review - Bird Brick Houses Swift box

Written by Dick

We have been sent a sample of a new style of Swift box by Bird Brick Houses Ltd in Sussex. There are two approaches to providing nest boxes for Swifts, either add nest-boxes outside or build them into the fabric of the building. Either way, they need to be an attractive feature or well hidden.  The Bird Brick House product is effectively a bespoke solution that provides a built in nestbox that matches both the existing brickwork and the space available in the wall.

Assembled box

The BBH Swift box comes in 3 sections. The body of the box, occupied by Swifts, is made in 2 halves so that the width can be adjusted to fit the space available in the brickwork and cavity. This can be anything between 100mm, in which Swifts can breed successfully, and 150mm, which gives them plenty of space. The front section holds slices of brick, ~20mm thick, matching the brickwork of the wall.

Removable front

The removable front section is secured with 4 stainless steel bolts so, it is easily removed for clearing out the occasional House Sparrow or Great Tit nest outside the breeding season.

It is easy to incorporate this box in the top courses of brick in a newly built building, but also, it can be retrofitted into an already built wall.  There is no need to cut bricks, so the wall can be restored to its original appearance.

Body of box with front removed

The box material is extruded recycled plastic 3mm thick. The raised central section has a concave indentation and is roughened.

We think this is a well thought out product, providing good accommodation for Swifts which is easy for builders to incorporate.

The price quoted is £75 + vat + p&p.

For further details see:
http://birdbrickhouses.co.uk/

Example of 4 nest boxes retrofitted into a wall

New Swift Homes at Greenmount Farm, Antrim

Another excellent example, this time from Antrim, Northern Ireland, of how, with a little ingenuity, an existing colony can be saved when a building is renovated.

Contributed by Rodney Monteith

Just outside the town of Antrim in County Antrim lies Greenmount Campus, part of the College of Agriculture, Food and Rural Enterprise (CAFRE). Within its grounds is a historic farm courtyard dating back to the mid 1800’s that has served both as a working farm building and a training area for the hundreds of agriculture students that have passed through during the past 100 years. Recently some renovation work was carried out to the building and I had the opportunity to examine some Swift nest sites under the slate roof that had been used for many years.

Square nest site, 200mm x 200m

There has been a great deal of discussion regarding size of entrance hole and nest chamber dimensions so the measurements of the nest spaces are interesting.

Nesting under a slate roof the birds had used an area with a maximum head room of approximately 90mm and this tapered to zero at the front of the chamber due to the slope of the roof. The floor of one square chamber was 200mm x 200mm while the other was a triangle similarly 200mm x 200mm- so half the floor area.

Triangular nest site, 200mm x 200mm

Bearing in mind the slope of the roof the triangular nest site must have been very cramped but was used successfully for many years, and considering the recent discovery of Swifts nesting in House martin nests this obviously wasn’t a problem.

In February 2012 the old roof slates were removed and repairs were made before re-covering.

New nest sites

The timing of the renovation work was coordinated to reach completion before the breeding season and as part of the work the ”fill” on top of the wall was removed. This provided potential nest sites but with no access points for the birds. The original nests were in small sections where the fill was missing but the addition of a fascia board meant the original access points were blocked.

This problem was overcome by partially removing some of the overhanging bricks to provide a series of 30mm x100mm gaps for access to a total of 18 nest areas.

View from the ground showing entrances

Since several pairs of Swifts nest nearby it was not long before the new sites were discovered by prospecting birds, aided by the fact that 3 of the sites were quickly adopted by House Sparrows.

Three of the new sites were visited by Swifts and one that had reared House Sparrows had a pair of Swifts that used it from 24th June until 14^th August 2012. Hopefully 2013 will see several of these new nest sites occupied successfully.

Slovak conference highlights problems across Europe for birds and bats in buildings.

This post highlights the growing problem of insulation in buildings and the negative impact on Swifts and bats. Helen Hodgson attended a conference in Slovakia which discussed this issue.

Contributed by Helen

The Slovak Ministry of the Environment and State Nature Conservancy hosted an international conference in Zvolen, central Slovakia, 25-26 October 2012, to discuss the problems faced by Swifts and bats in buildings. The intention was to share experiences and to exchange ideas for solutions to these problems

Zvolen town square

As a result of EU initiatives, the installation of insulation, which poses a serious threat to building-dependent species, increases each year.  The requirement to save energy and to create jobs to stimulate economic growth has driven this increase.

There are EU directives to protect wildlife, but the application, in practice, of protective measures falls far short of what is needed to halt the decline of Swift and bat populations.  This is a common problem across Europe. A great deal depends on the energy and enthusiam of individuals, both volunteers and people in official positions to ensure that planning conditions are met.  In addition, it was agreed that the penalties for infringements to planning laws are insignificant: in too many cases, Swifts and bats are killed or made homeless.

The Regional Association for Nature Conservation and Sustainable Development (BROZ) in partnership with the Slovak Ornithological Society, BirdLife Slovakia and the Slovak Bat Conservation Society have received part EU funding from LIFE+ Nature & Biodiversity Programme, a four year undertaking now in its ninth month.  During these nine months, 4,000 buildings in 100 towns have so far been checked for populations of Swifts and bats. This work involves a great number of people, many of whom are volunteers.

Seminars for state administrators and people in the construction industry are under way; practical and simple guidelines are being prepared and laws are being reviewed.

So far, more than 1,000 nest-boxes have been installed and 2000 original nesting possibilities retained after insulation – to compensate for loss of nest sites; these will be monitored.  However, it is felt that more needs to be done to involve the general public via PR and the media, as there is still a lot of ignorance of these issues.

A further aim of the project is to strengthen cooperation between state institutions, investors, the construction industry and local communities.

This worthwhile conference was well attended by approximately a hundred and fifty delegates from around Europe (8 countries) and the papers presented were interesting and informative.

There are lessons to be learned all over Europe, as the unintended consequences of policies to conserve energy result in major problems for our urban wildlife.

Fulbourn Community Swift Survey 2012

The provision of Swift nest boxes in Fulbourn to mitigate the loss of 72 pairs of Swifts in 1960's buildings, scheduled for demolition, is probably one of the largest such projects in the country. It is also headed towards being one of the most successful. In 2012, 157 new nest-boxes were occupied by 27 pairs of Swifts, alongside 5 of the original nest-sites.

Contributed by John Willis

The Fulbourn Community Swift Survey was organised by the local swift group, which was formed in 2011. Our focus this year was on the 'Swifts Development' where an estate of 1960s system built houses is being demolished and replaced by a higher density of new homes in a phased programme. These old buildings had become the home for a large colony of swifts and provision is being made for both internal and external swift nest boxes in the new houses. You can read background information in Swifts in Fulbourn, Cambridgeshire and this RSPB case study.

Old houses with stopped up nest sites
where the panel joints meet the roof boards

It was hoped that our community survey would complement the official survey to be undertaken by Applied Ecology Limited, who have been monitoring the colony since 2009, and help increase awareness of the swifts among the local residents.

We met on site every Wednesday evening from 9 May to 15 August. Individuals made observations on other evenings during the summer, especially when the weather was warm! One of the residents was a regular member of our team and many other local people approached us on survey evenings to ask about the swifts. We often received useful reports of birds using specific boxes and all feedback about the swift project was very positive.

Potential nest sites on several blocks of old houses, which had been used for breeding in 2011 (20+ nests reported by Applied Ecology Ltd), had been sealed with foam prior to the arrival of swifts. However, one remaining block of 5 houses (2 nest sites recorded by Applied Ecology in 2011) will not be affected by re-development, and the nest sites there were available to swifts this year.

With 157 swift boxes already installed on the site it was quite a challenge for us to adequately monitor all areas. The boxes are of two types; internal custom made wooden boxes (111) incorporated in the house timber frames in gable ends, and external Schwegler 1MF double boxes fitted on gable ends in phase 1 and on front/rear elevations in phase 2.

Internal wooden nest boxes are
built into the house timber frames

The first swifts of the season were seen over the Development on 30 April with a group of up to 12 birds flying over the old buildings at the west end of the site. The numbers steadily increased reaching a peak on 11 May when there were up to 50 birds forming into screaming flocks and moving around rapidly. Numbers flying in the evening fluctuated over the following weeks but there was a distinct increase in activity from 18 June. A spell of milder weather from 17 July heralded a further increase in the level of activity with some great flying displays. Peak numbers were seen on 23 July, a warm evening, with over 50 birds flocking overhead and screaming parties of up to 20. The last large group of 35 was seen over the site on 3 August and after that the numbers steadily declined with the last sighting of the year being a pair of birds flying over the centre of the site on 20 August.

In phase 1 of the building development, which comprises phases 1a and 1b referred to below, 40 out of 63 internal boxes were used at some point in the season by swifts compared to 4 out of 22 external boxes. Of these, 26 internal boxes and 1 external box were used regularly enough during the season for us to suspect nesting activity.

We observed regular use of 15 out of 18 internal boxes in phase 1a, which has been colonised by swifts since 2009, whereas the corresponding figures for phase 1b, which was completed prior to summer 2011 but with no confirmed nesting, were 11 out of 45. The one regularly used external box was also located in phase 1a. It is encouraging that swifts now appear to be colonising the more recent phase 1b and hopefully the numbers there will increase over the next few years.

These unmodified Schwegler 1MF boxes
are very popular with starlings

The external Schwegler boxes were clearly not favoured by swifts, but possibly this is because so many starlings were already in residence by the time that the swifts arrived.

Prior to installation, we modified the external Schwegler boxes in phase 2 to restrict the entrance size to deter starlings, but we did not observe any birds using them. You can read more about the background to this in Fulbourn Update.

Early in the season a group of swifts were observed flying close to the four internal boxes on a recently completed house in phase 2. Subsequently, site workers reported that they had seen swifts enter boxes nearby. However, despite observation of these locations over the summer on a good number of evenings we never managed to record a swift entering a nest box in that area. There were often swifts overflying this latest phase of the development, so hopefully some of the 72 swift boxes (including both types) already installed have been ‘checked out’ for use in the future.

The one remaining old block of houses was a focus for swift flying activity throughout the summer and we regularly observed birds accessing 5 nesting sites under the boards on the edge of the flat roof and occasional activity was observed at 2 other locations.

Swifts started using internal boxes in the
narrow gaps between some of these new houses

We do not know whether there was successful nesting and rearing of young at any of the regularly used sites. However, it is encouraging that the number of these sites (32) was similar to the number of nesting places identified in the official 2011 survey undertaken by Applied Ecology Limited, especially given that around 20 nest sites in the old blocks were not available this year and there were big reductions in the number of nest sites used in each of the previous two breeding seasons.

During the summer there was a very positive response and useful input from the residents of the site and we aim to build on this for the 2013 Community Swift Survey.

We would like to thank Rob Mungovan, South Cambridgeshire District Council Ecology Officer, for his support and encouragement.

If any Fulbourn residents reading this would be interested in putting up a nest box or taking part in the 2013 survey, then please contact us at fulbournforum@gmail.com.

Warsaw Swift Tower

These pictures are of a model of one of the winning entries in a competition to design a swift tower to be built in Warsaw, Poland.

Contributed by Rafal Pieszko, Menthol Architects

click on images to enlarge

One of the biggest problems for swifts in Poland is the loss of nesting sites. Modern construction is devoid of spaces where the birds can nest. Old buildings are renovated in a way that slots and holes where the birds nest are blocked.

Unfortunately, the presence of birds in buildings during renovation causes intense conflicts between bird lovers and investors. However, people are beginning to realize that their presence is beneficial because they eat huge quantities of insects which are oppressive to humans.

One of the best ways to protect these birds is to create safe nesting sites. Construction of small architectural forms would provide safe accommodation for the birds in a city environment.

The dynamic silhouette of the swift during flight was the inspiration for the project. Long, narrow, pointed wings during flight and a slightly forked tail were captured in the proposed design, both in the front and side elevations. The form of the tower, reflecting the swift in flight can be easily recognised, and thus it promotes action to protect it.

The proposed location for the tower is in the park near the Vistula river in Warsaw. The tower is 7.82m height and has 90 nest boxes. The solar photovoltaic panels provide power for playing attraction calls, as well as 4 LED strip lights which will be lit at night time. This way the structure will function as a year round sculpture and it will attract more attention from people who will be aware of what is being done for swifts in Warsaw.

We will reuse the ground from digging the foundations to form small landscape shapes covered with grass, as shown in the model.

For more details, see Menthol Architects

m e n t h o l   a r c h i t e c t s  -  natural  architecture  laboratory

Wessex Place, Cambridge

This is a story of cooperation between local swift enthusiasts, the city council, owners, architects and builders resulting in the installation of 34 swift nest boxes in a renovated building.

Written by Dick Newell

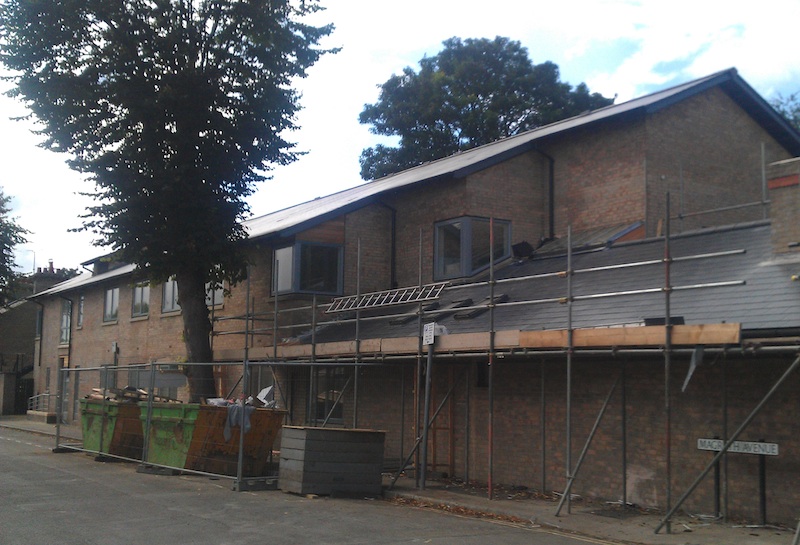

Wessex Place nearing completion with 14 nest-boxes under

the eaves on the left,  and another 20, in 2 lots of 10 under

the eaves on the right.

Wessex Place, a residential care home, on the one time site of the Rex Cinema, was closed in April 2009, since which time it has remained empty, apart from 2 pairs of swifts and a number of nesting starlings. Trinity College spotted the opportunity to renovate it and turn it into student flats.

Magrath Avenue resident, Helen Hodgson, knew that there were breeding Swifts and had already informed Guy Belcher, Cambridge City Council Nature Conservation Officer.

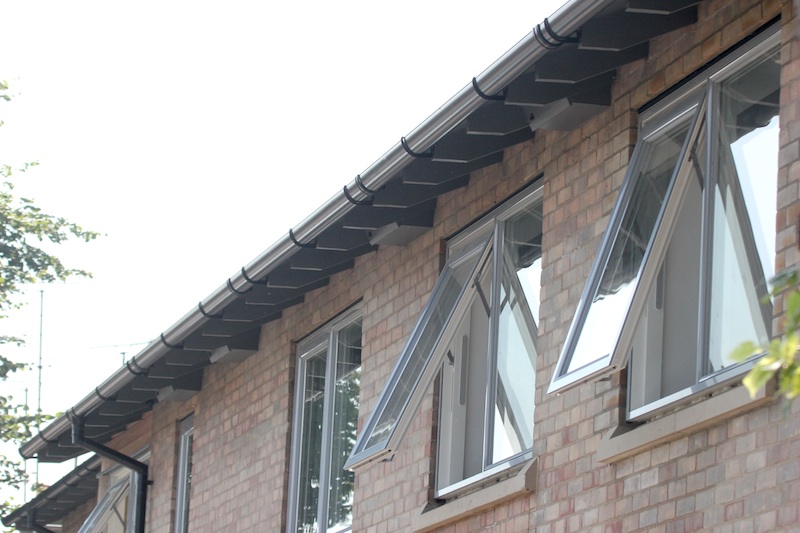

10 of the 20 nest-boxes built into the eaves. Note the small
speaker on the left with wire back into the roof space ready
for attraction call playing

Discussions took place between Guy,  the agents, Bidwells, the site manager Michael Denson and Trinity College who all agreed it would be a good idea to preserve the existing nest sites, as well as to create more opportunities for nesting swifts in this part of Cambridge.

The original intention was to preserve the 2 existing nesting places and to provide an additional 7 nest-boxes.

4 of the built in boxes. The swifts will nest on top of the
wall which is about 25mm below the entrances

On examining the situation, Michael Denson, together with Roger Seaman, Bidwells' Building Surveyor, could see that there were another 8 places identical to where the swifts were nesting, many of these had been occupied by starlings. Further, these nesting places were so large that each one could easily accommodate 2 pairs of swifts. So the 2 nesting places requested became 20 nesting places. All that was needed was a simple partition down the middle of the space between the joists, and a facing board with entrances designed for swifts which would exclude starlings. These were made by Bob Tonks.

4 out of 7 pairs of nest-boxes.

There is another speaker installed at the far end

1 pair of nest-boxes. The gap above the box, which avoids

blocking ventilation into the roof space, has an insect and
bird-proof barrier. Doubtless some swifts will attempt to get
into it.

For the other 7 boxes, we built a prototype of a single box to fit on the outside of the south part of the building under the eaves between the protruding joists. It was requested that the nest-boxes be made longer, so that they would fit neatly between the joists to which they could be attached more easily than screwing them to the wall behind the boxes. The extra length meant that each box could be divided in 2, thus yielding 14 nest boxes.

Although the two pairs of swifts have lost a breeding season, there is every chance that they will return next year to find luxury new accommodation, and, over time, be joined by many other pairs.

The residents of Magrath Avenue can look forward to a vibrant swift colony on their doorstep.

The Air Brick Liner Swift Brick

In ancient times, Swifts nested wholly in natural places, such as holes in trees, sometimes made by woodpeckers, or in rock faces. Then a new source of nest sites appeared when we unintentionally provided spaces in our buildings, and doubtless the swift population greatly increased. Now that we are destroying nest places with roof renovations and roof insulation, the time has come to deliberately incorporate nest places in new buildings. We previously reported on the rescue of a Swift colony in St Neots, using air brick liners for swift bricks. The success of this has lead us to refine our ideas and report fully on how such air bricks may be deployed more widely.

Contributed by Bill Murrells & Dick Newell

Swift brick. [since this picture was taken, we now

use 'undercloak' for the ends, a low cost, strong, asbestos

substitute].

The picture at left shows A swift brick made from a standard, clay air brick liner of length 200mm. The internal floor area is 200mm x 175mm, diagonal 266mm), and the internal height is 100mm. This is big enough for any swift to turn around, without bending its wings and it is large enough for a young swift to exercise. The outside dimensions of this brick are 200mm (plus 2 slates) x 215mm x 140mm.

At least 2 of these were occupied at St Neots in 2012, so they are accepted by swifts.

The air brick is the model 401 (see PDF on page 9). The ends, made of slate, or under cloak, are glued on with resinous glue. The air brick is available in any length up to 300mm. Although swifts will use an air brick 200mm long, They may prefer something longer, so that they can get further from the entrance.  From a swift's point of view, a brick 300mm long would be luxurious, 225mm (the length of a standard brick) could be a good length to go for. The computer models below illustrate air bricks in 2 situations. This brick occupies the space of 1 house brick horizontally and 2 courses of bricks vertically. Its internal floor area is 200mm x 175mm (diagonal 285mm),  height 100mm; the outside dimensions are 200mm (plus 2 slates) x 215mm x 140mm

Four SB-225's in a gable end

Two SB-225's under a soffit - from below

The ideal location for installing air bricks is as high as possible under the eaves or in a gable end. It is possible to hide much of the brick behind a barge board or within the eaves. They would also go well in the middle of a wall, but in such places where they could get wet, then a cavity tray might be needed (a piece of felt below and behind the swift brick)

Two SB-225's under a soffit - from above

The advantages of this swift brick are that it is made of approved building materials, it looks aesthetically pleasing, it is easy to make and easy to install, it is a good size for swifts and it is made of low cost, readily available materials; the basic air brick costs less than £10. It merely requires an angle grinder to fashion the entrance (a slot 65mm x 28mm), and some glue.

Thus we think that it should be acceptable to architects and builders, as well as being desirable for swifts.

Although the terracotta colour is acceptable in most situations (see examples below), the air brick can be painted with any exterior paint, such as Sandtex.



Examples:

6 of the 12 boxes (SB-200's) in the old St Neots factory site in Brook Street

At least 2 boxes were occupied in 2012, and 1 pair bred.

One of the 5 boxes occupied in 2013, chicks were known to be raised in at least 4 boxes
and Swifts were seen entering 9 different boxes.

2 air brick linersin a small development in Colville Rd, Cherry Hinton, Cambridge

Closeup of an installed air brick liner

Antrim Borough Council makes space for Swifts

This is a good example of a building enhanced for Swifts without detracting at all from the building appearance. Contributed by Rodney Monteith

The Oriel Gallery: Eleven Ibstock bricks on this facade

As part of a major restoration project Antrim Borough Council in Northern Ireland has provided new homes for Swifts.

Click to enlarge

 In 2011 a total of 11 Ibstock Swift bricks were included in the renovation of one of its properties. The red brick construction of “The Long Barn” means that the Ibstock boxes blend in perfectly and now renamed “The Oriel Gallery” the building will provide permanent homes for swifts for many years.

The Oriel Gallery is situated within Antrim Castle Gardens which were first laid out in the 17th century and retain many of their original features.
For more details on the project please visit www.antrim.gov.uk

Great Shelford Swift Belfry

This is another triumph for Rob Mungovan, ecology officer with South Cambridgeshire District Council.

He has this to say: "Here is the recently restored school building in Great Shelford.  There were swifts nesting under part of the end wall. That aspect of the building could not be entirely retained but Hill Residential were happy to adapt the bell tower to provide for swifts and bats (as well as putting up other swift boxes).

The historic building people are happy with the look and the fact that we now have a restored landmark building, and I'm happy that we've provided for swifts and bats. This is a great outcome. We'll have to wait for next summer to see if it works."

There is a total of 20 nest-boxes for Swifts in the belfry, 12 in the lower level and 8 in the upper level.

A closer view showing some of the Swift entrances.






















Here are the Swift boxes at the top and bottom of the bell tower.

This is the partially completed bat roost.
